    Plumb toilet tub and sink pre concrete slab
    I have a 20x32 pool house I am building on a concrete slab. In the back left corner will be a bathroom with toilet, tub and sink. How do I know how to set the drain lines to be in the correct place.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Jun 4, 2012, 03:04 PM

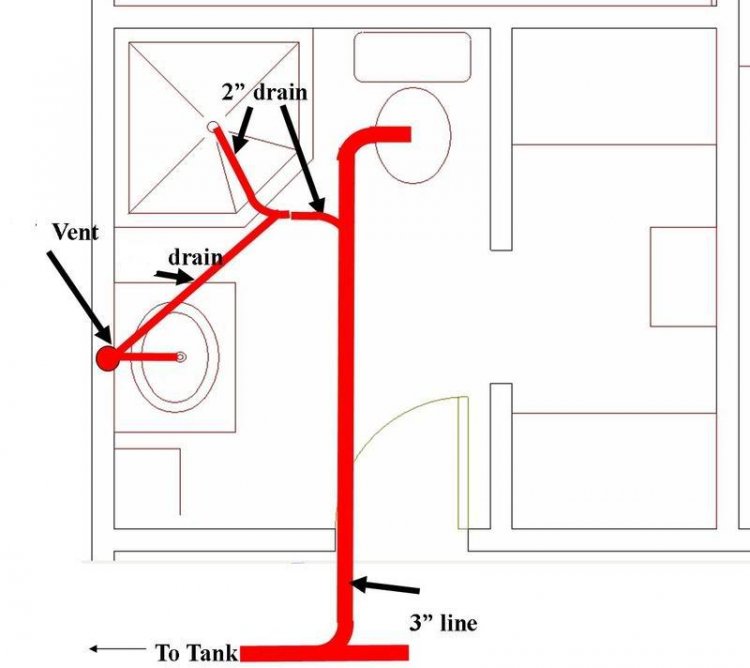

    This is a typical bathroom rough in. Good luck with your project, Tom
    Attached Images

    gnrdow's Avatar
    gnrdow Posts: 2, Reputation: 1
    New Member

    #3

    Jun 4, 2012, 06:46 PM
    Quote Originally Posted by speedball1 View Post
    This is a typical bathroom rough in. Good luck with your project, Tom
    Speedball, thanks for your help. What are the specs for where the drain line is in reference to the outside edge of the slab. Will the vent pipe come up the footer and through the wall to vent out the ceiling. I"m assuming a 2" vent pipe? Thanks again.
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Jun 5, 2012, 07:39 AM
    What are the specs for where the drain line is in reference to the outside edge of the slab.
    The main will extend out of the slab pointing to the location it will connect to the sewer.
    Will the vent pipe come up the footer and through the wall to vent out the ceiling. I"m assuming a 2" ven
    The 2" vent pipe will be nowhere near the footer. It will come off the sanitary tee that drains the lavatory. You have options here. You can run the vent out the roof or tie it back to a existing vent in the attic. If AAV's are allowed in your area you could install a Studor Vent on a tee directly downstream from the trap, (see image) Good luck, Tom
    Attached Images
